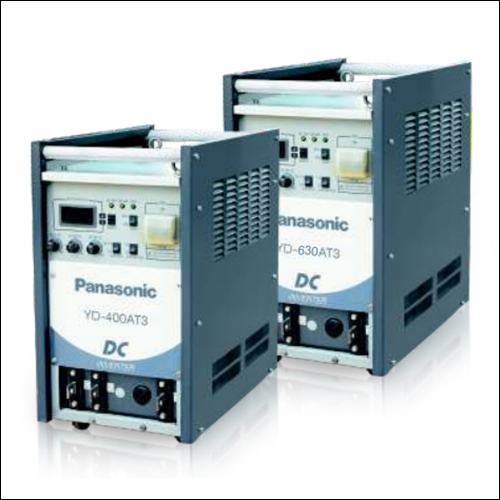

400AMPS IGBT Inverter DC Arc Welding Machine
Product Details:
400AMPS IGBT Inverter DC Arc Welding Machine Price And Quantity
- 10 Unit
- 50000 INR/Unit
400AMPS IGBT Inverter DC Arc Welding Machine Trade Information
- 500 Unit Per Month
- 10 Days
Product Description
Specification
| Technical Specifications | Units | 400AT3 |
| INPUT | ||
| Rated input voltge | Volts | 415, 20% |
| Phase/freq. | No./Hz | 3ph/50-60 |
| Max input KVA @ 415 Vac |
|
|
| 60% Duty cycle | KVA/KW | 17.6/16.7 |
| OUTPUT | ||
| Rated current range | Amps | 20-410 |
| Rated output voltage | Volts | 36 (MMAW)/26 (Scratch TIG) |
| Voltage reduction device (VRD) |
| <13V DC |
| Welding current (40 C) |
|
|
| @60 % DUTY Cyclr | Amps | 400 |
| @100 % duty cycle | Amps | 310 |
| GENERAL | ||
| Conformance to international standards |
| All machines are manufactured as per std. IEC 60974-1 :2000/GB 15579.1:2004 |
| Power control method |
| IGBT Inverter controlled |
| Digital display |
| 4 digit, 7 segment LED Display |
| Hot start & Arc force |
| Adjustable from front panel |
| Ingress protection | Class | IP 23 |
| Insulation | Class | H |
| Cooling | Type | Forced air cooling |
| Power factor |
| >0.9 |
| Oprating temperature | C | -10 to 50 |
| Air carbon arc gouging | mm | - |
| Dimension (LxBxH) | mm | 550x 330x 600 |
| Weight | kg | 43 |
| Ordering information |
| Model no. |
| Power source ( with Amp Meter) |
| yd-400AT3DJR |
| Power source ( with amp &volt meter |
| yd-400AT3DJR |
| Power source ( cellulosic electrode) |
| yd-400AT3DJR |
| Remote controller ( optional) |
| tsm93067 |
